Internal wall insulation traps heat by adding a continuous insulated lining to the inside face of external walls, so less warmth conducts through Manchester’s solid brick and stone.

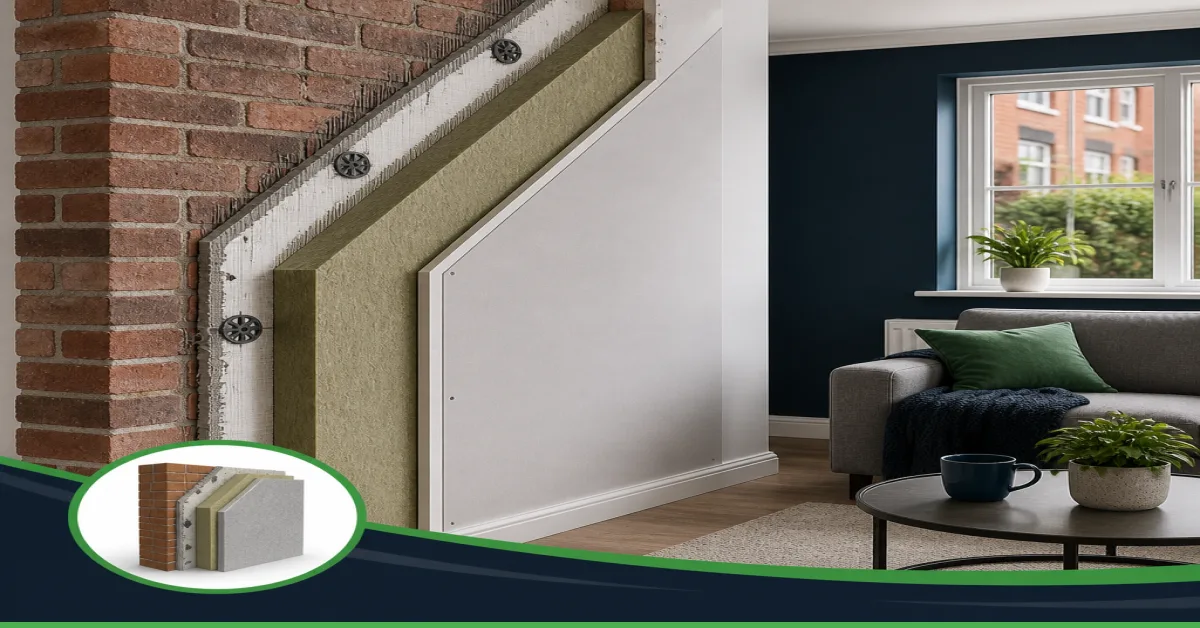

On a typical terrace the stack runs from the existing wall inward: a checked, dry substrate; a fixing method (mechanical fixings, adhesive where the system allows, or a batten or independent lining); the insulation board; a vapour control layer where the specification needs it; then a plasterboard or wet plaster finish. Joints, service penetrations and socket boxes are sealed so warm indoor air does not stream into cold masonry.
Manchester brick and stone need different prep from a dry modern block wall. We look for rising and penetrating damp, failed pointing, bridged DPCs and wet chimney breasts before any board goes on. Lime mortar walls must keep a drying path. Closing a damp or salt-laden wall with a tight, vapour-closed lining is how internal insulation gets a bad name locally. The distinction matters across Manchester's housing stock: a pre-1900 terrace in Hulme built with lime mortar behaves differently from a 1930s semi in Didsbury laid with cement, and a specification that suits one can damage the other.
Heat still leaks at thermal bridges if the lining stops short. Bay windows, lintels, chimney breasts, floor edges and returns into party walls are the usual weak points on Victorian and Edwardian stock. Those junctions need extra insulation, insulated reveals, or accepted cold-bridge detailing, otherwise the new wall feels warm while the bay still streams cold.
North West humidity makes condensation management part of the heat-retention job, not an afterthought. Vapour-closed PIR with a well-sealed vapour control layer suits dry, well-assessed walls. Vapour-open linings such as wood fibre or calcium silicate suit older solid walls that still need to breathe. The wrong choice leaves moisture in the brick even when the room feels warmer.
| Wall build-up (typical Manchester solid brick) | Typical U-value | What you feel in the room |
|---|---|---|
| Uninsulated 215 mm solid brick | About 2.0–2.1 W/m²K | Walls feel cold, heat dumps into the street, radiators work harder |
| Internal lining with 25 mm high-performance board | Often around 0.55–0.70 W/m²K | Noticeable improvement, limited space loss, remaining cold spots at bays and returns |
| Internal lining with 50 mm high-performance board | Often around 0.30–0.40 W/m²K | Much slower heat loss if junctions are treated, about 50–70 mm of room depth used |
| Thicker vapour-open lining (wood fibre or similar) | Often around 0.28–0.40 W/m²K | Better moisture buffering on older lime-mortar walls, more depth than a thin PIR board |
U-value is heat flow through one square metre of wall for each degree of temperature difference. Dropping a terrace wall from about 2.1 W/m²K toward 0.3–0.4 W/m²K is the practical target of a well-detailed internal system. The board thickness only delivers that if the lining is continuous and the bay, chimney and floor edges are not left as uninsulated strips. A useful way to think about it: at 0.35 W/m²K your wall loses roughly six times less heat than an uninsulated solid brick wall of the same area.
Manchester Wall Insulation installs internal wall insulation in a surveyed sequence: moisture mapping first, then strip-out, lining, sealing, plastering and controlled drying, usually room by room in an occupied house.
The survey is not a tape-measure walkaround. We map damp, check chimney breasts, look at lime versus cement pointing, note heritage plaster, cornicing and original skirtings, and record how the house is ventilated. Conservation-area streets and pre-1900 terraces need that fabric reading before a board type is chosen. Shared party walls stay as party walls. We insulate external elevations and detail the returns so the new lining does not trap moisture at the neighbour junction.
A single room in a Chorlton-type terrace often follows a seven-day working pattern. A whole house takes longer because rooms are phased so you keep a kitchen or bedroom in use. Tight rear access, shared alleys and skip permits shape the programme as much as the plaster does. If your street has no rear vehicle access and a skip cannot sit on the alley, materials may need to be barrowed through the house, which extends the programme and is a cost factor we flag before quoting.
Furniture is cleared or covered, floors are protected, and plaster that cannot stay is removed. Original skirtings and cornicing are numbered and set aside where they are being reused. Combustion appliances and flues on the wall are flagged before anyone covers an air path.
Damp patches are resolved or the lining specification is changed. Wires and sockets are brought forward. Ventilation paths at suspended floors, chimneys and trickle vents are kept open. This is the safety-critical day on pre-1900 terraces, particularly where a gas fire or boiler flue terminates through an external wall that is about to be lined.
Insulation is fixed to the surveyed pattern, with extra attention at bays, lintels and chimney breasts. Party-wall returns are closed cleanly so there is no hidden cavity of warm, wet air.
Membranes or vapour-open joints are completed to the specification. Socket boxes, window reveals and floor edges are sealed. A missed gap here undermines the whole lining.
The finish layer goes on. Ornate rooms need beads and stops set to protect remaining cornice lines.
Skim or wet plaster is applied in conditions we can control. Manchester humidity is why we do not rush this coat on a cold, wet week with the windows shut and no extract.
Plaster is left to dry with ventilation, not forced occupancy against wet walls. Skirtings go back, or matching profiles are fitted. Decoration waits until the finish is actually dry.
| Phase | What you see in a typical terrace room | Manchester hurdle we plan for |
|---|---|---|
| Survey | Moisture readings, photos of bays, chimneys, skirtings | Penetrating damp on exposed brick, lime mortar, heritage plaster |
| Days 1–2 | Bare wall, dust control, services moved forward | No rear vehicle access, shared alley, party-wall courtesy |
| Days 3–4 | Boards up, membrane or open-joint detailing | Bay windows and chimney breasts creating cold bridges |
| Days 5–7 | Plastered wall, skirtings returning, room still drying | Slow drying in damp North West weather, need to keep the house ventilated |
This is professional installation, not a DIY board-and-skim weekend. Occupied terraces need dust control, flue awareness and a drying plan. If a room cannot be taken out of use, we re-sequence rather than plaster over a damp or incomplete lining. A common compromise is to work around a living room during the day and move furniture back at night if the wall is being lined rather than wet-plastered, but we only do that where the specification allows early reoccupation without compromising the membrane joints.
Choose full internal wall insulation when every external elevation loses heat or sits in a wind-exposed street. Choose a partial job when one or two cold walls dominate the discomfort and you need to phase cost and disruption.
North-facing living rooms and bedrooms usually pay back comfort first in Manchester, because they see less sun and stay cold to the touch. A Moss Side-type terrace with a bitter rear elevation can often start there, provided the specification leaves clean junctions for later rooms. Insulating only a narrow hallway saves board area but does little for whole-house heat loss if the front and rear walls stay bare.
Partial work still needs proper returns, insulated reveals and a vapour strategy. A patch of board on a cold chimney breast with untreated wall around it just moves the condensation line. Leave service ducts, consumer units and future radiator drops accessible so a second phase does not mean ripping a finished room apart.
| Option | Thermal result | Disruption | When it is the sensible buy |
|---|---|---|---|
| Full IWI on all external walls | Highest heat retention, fewer leftover cold bridges | Longer programme, more rooms out of use in sequence | Exposed streets, gable ends, homes that feel cold in every room |
| Cold-spot rooms only (often north or rear walls) | Strong comfort gain in the rooms you heat most, remaining heat loss elsewhere | One or two rooms at a time | Budget phasing, clear problem elevations, a plan for later junctions |
| Narrow hallway or single chimney breast only | Small material saving, limited whole-house effect | Low | Only as part of a wider plan, not as the full insulation strategy |
Decision path: if the house sits in a wind corridor or on an open new street, for example parts of Ancoats or a gable-end terrace facing an exposed junction, specify full external-wall lining. If only the north or rear rooms are miserable and the rest are sheltered, a partial first phase is reasonable. If you cannot detail the junctions between insulated and uninsulated wall, do not start the partial job until that detail exists on paper.
Full installation costs more and disturbs more of the house. Partial installation spends less now and can still leave you with cold bedrooms and a temperature split between rooms. We will show both options after survey so you are choosing a sequence, not buying a dead-end patch.
The main risks of internal wall insulation in Manchester are trapped moisture, lost floor area, and damage to original plaster and joinery. Professional installation reduces those risks through survey, system choice, and controlled drying, which DIY board-fixing does not.
Manchester humidity plus a cold brick leaf can put moisture inside the lining if vapour control and ventilation are wrong. We dry or remediate damp first, then choose vapour-open or vapour-closed systems on purpose, and we dry plaster with ventilation rather than sealing a wet skim behind furniture. In practice this means leaving windows slightly ajar or running background extract for a set period after the skim goes on, even when the weather is cold.
A 25 mm board plus finish often uses about 40 mm of room depth. A 50 mm board plus plasterboard and skim often uses about 60–70 mm. In a small Victorian terrace room that is the difference between keeping a full wardrobe wall and losing a noticeable strip on each external elevation. Thin boards save space and give a weaker U-value. Thick boards do the opposite.
Skirtings, cornices and ceiling lines in Hulme and similar streets are easy to wreck with careless strip-out. We lift and number reusable skirtings, stop plaster short of ornate cornice, and use matching profiles where originals cannot return. The mitigation is slow removal, not a promise that every moulding will survive unseen decay. For reusing original skirtings, three approaches work: refixing with screws rather than nails, setting them on packing strips to clear the new plaster line, or fitting a slightly deeper matching profile if the original is too shallow to reach the new wall face.
Bays and chimneys left untreated become the new damp patches. We price junction detailing as part of the job, not as a later extra after black mould appears on the reveal.
Dust, no access to a room for several days, and wet plaster. We phase rooms, protect original floorboards, and keep combustion ventilation clear during the works.
Salford Quays and other newer waterside blocks are a different risk set from a lime-mortar terrace. Concrete-frame construction, uninsulated slab edges and balconies conduct heat out in ways solid brick does not, and the correct detail is often a thin insulated lining combined with edge treatment rather than a thick board. If someone proposes internal linings there, ask these five questions before you appoint:
Appoint a contractor who will refuse to line a wet wall. That judgement is the practical difference between a warmer room and a hidden damp void.
Cost for internal wall insulation in Manchester homes is driven by survey quality, access and waste, board specification, specialist labour, plaster finish, and the amount of original wall surprise behind the existing plaster.
A cheap ballpark that skips moisture mapping is the expensive quote. In a tight terrace, skip hire, carrying distance and cutting waste around bays can rival the survey fee. Paying for a proper survey is how you avoid buying the wrong system for a damp elevation.
Often around 5–10% of the job, and the part that prevents a wrong purchase.
Often around 8–15%, higher where there is no rear vehicle access and materials must be barrowed through the property.
Often around 30–40%, rising with thicker or vapour-open systems.
Often around 20–30%. This is lining work, not a general builder’s afternoon.
Often around 15–25%. Plasterers and insulation specialists are different trades and both show up in the price.
We plan around 10% on older Levenshulme and similar stock, because lath, salting, hidden flues and failed pointing appear after strip-out.
Edwardian semis usually cost more than 1930s bay-fronted houses because ceilings are higher, bays and fireplaces are more elaborate, cornices need protecting, and wall thicknesses change around the house. A 1930s semi is often more regular, with simpler skirtings and fewer heritage constraints, so cutting, making good and finishing take less labour. Where a 1930s wall is often a consistent cavity or solid brick build with straightforward reveals, an Edwardian bay with curved plaster, original picture rails and a tiled hearth requires patient strip-out and more beads and stops, which is where the labour percentage climbs.
Live figures belong on a survey quotation for your address. The value of that survey is a specification that matches the brick, the moisture load and the rooms you can actually take out of use.
Manchester Wall Insulation is a local internal wall insulation contractor that specifies from the fabric of Greater Manchester housing, then installs in occupied homes with a written sequence from survey to dry plaster.
Which is how terrace jobs stay dry after the lining goes on.
Instead of stopping the board at the easy rectangle of wall.
Use humidity-aware plaster drying because North West weather does not forgive a sealed wet skim.
You appoint us for judgement on vapour-open versus vapour-closed systems, for heritage-aware strip-out, and for a quotation that includes access, waste and a contingency for what is behind old plaster. If internal insulation is the wrong system for the wall, we will say that at survey rather than force a lining.
Yes, internal wall insulation is a good idea for many Manchester terraces when the external walls are solid, reasonably dry, and you cannot or do not want to clad the outside. It is a poor idea on wet brick, unresolved penetrating damp, or where bays and chimneys will be left as untreated cold bridges. A survey decides which of those you have.
Internal wall insulation does not have to cause damp in older Manchester homes if the wall is dry enough to line and the vapour strategy matches the masonry. It can cause or hide damp if a vapour-closed board is stuck to wet lime-mortar brick, if vents and chimneys are blocked, or if warm room air leaks behind the lining. Damp checks and the right system are the control, not hope.
Internal wall insulation typically takes about 40 mm off a wall with a 25 mm board and finish, or about 60–70 mm with a 50 mm board, plasterboard and skim. On two external walls of a small Victorian room that is a noticeable strip, not a full metre, but it can affect wardrobes, curtain returns and socket positions. Thickness is a comfort-versus-space choice we set out at survey.
Yes, you can insulate just north-facing walls in Stockport if those elevations are the cold problem and the junctions to uninsulated walls are detailed. You should not treat it as a complete heat-loss solution while front or gable walls stay bare. Partial work is a phased purchase, not a shortcut that ignores condensation at the stop-end of the board.
Yes, Manchester installers who work on Victorian and Edwardian houses can handle ornate plasterwork by protecting cornices, lifting reusable skirtings, and stopping new plaster on beads rather than cutting through mouldings. Not every profile can be saved if it is already rotten or cement-bonded. Ask to see how the specification treats skirtings and ceilings before strip-out starts.
A correctly specified internal wall insulation system can perform for decades in a damp UK climate if the wall stays dry, vapour control remains intact, and indoor ventilation is maintained. Boards that are fitted to wet masonry, or linings with unsealed sockets and cold bridges, fail much sooner through mould and interstitial moisture. Lifespan follows the survey and the detailing, not the product brochure alone.
To request a survey or quote in Manchester, contact Manchester Wall Insulation with your address, property age, and which rooms feel cold or show damp.
A survey is the next useful step because board type, thickness, vapour control and programme all depend on the wall you actually have. We will map moisture, note bays, chimneys, skirtings and access, then give a specification and quotation for full or partial internal wall insulation.
Start from manchesterwallinsulation.co.uk and ask for an internal wall insulation survey. Have ready any known damp history, whether the house is occupied throughout, and whether original plaster or joinery must stay. That briefing lets us plan a room sequence you can live with, rather than a generic lining quote.
